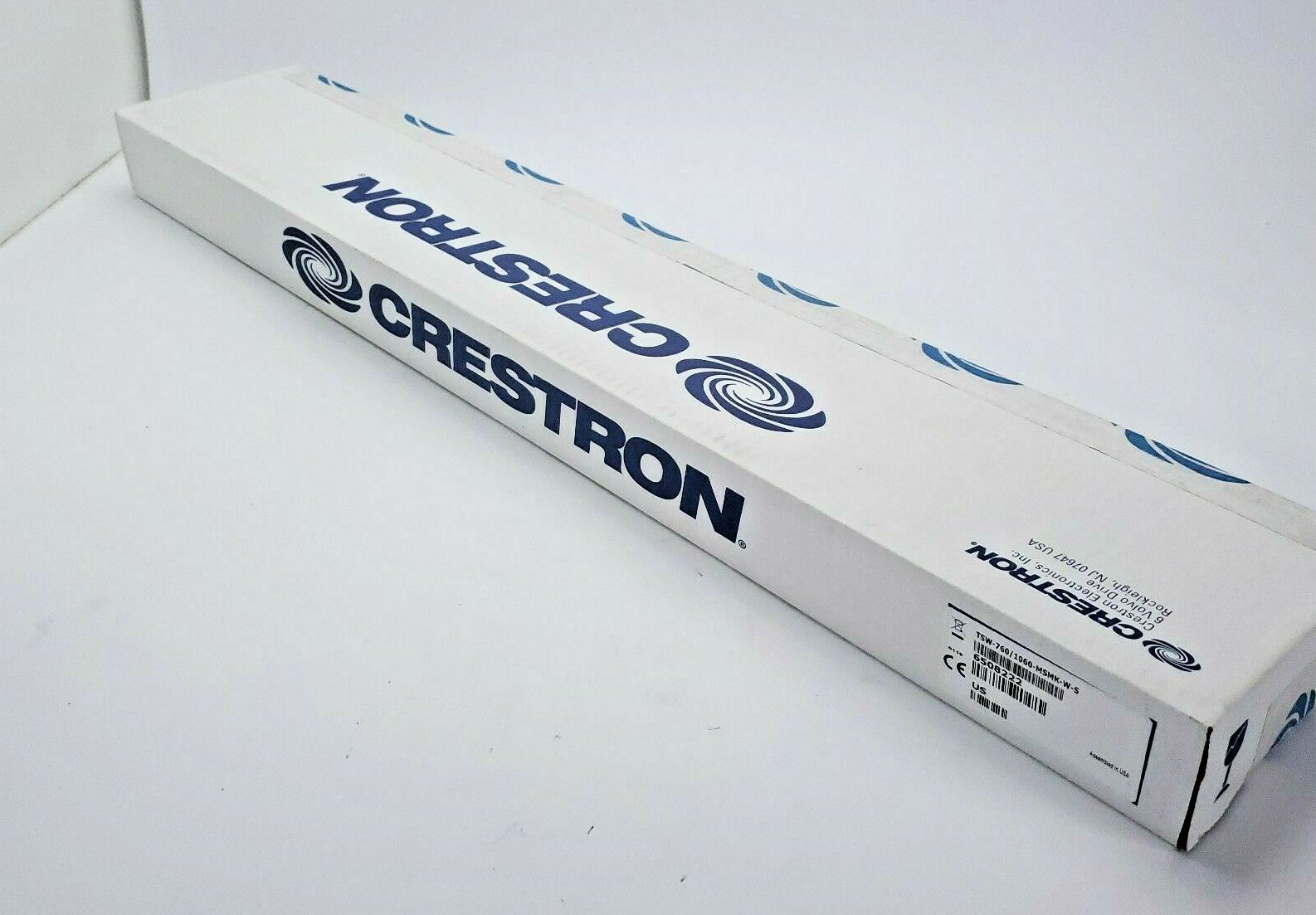

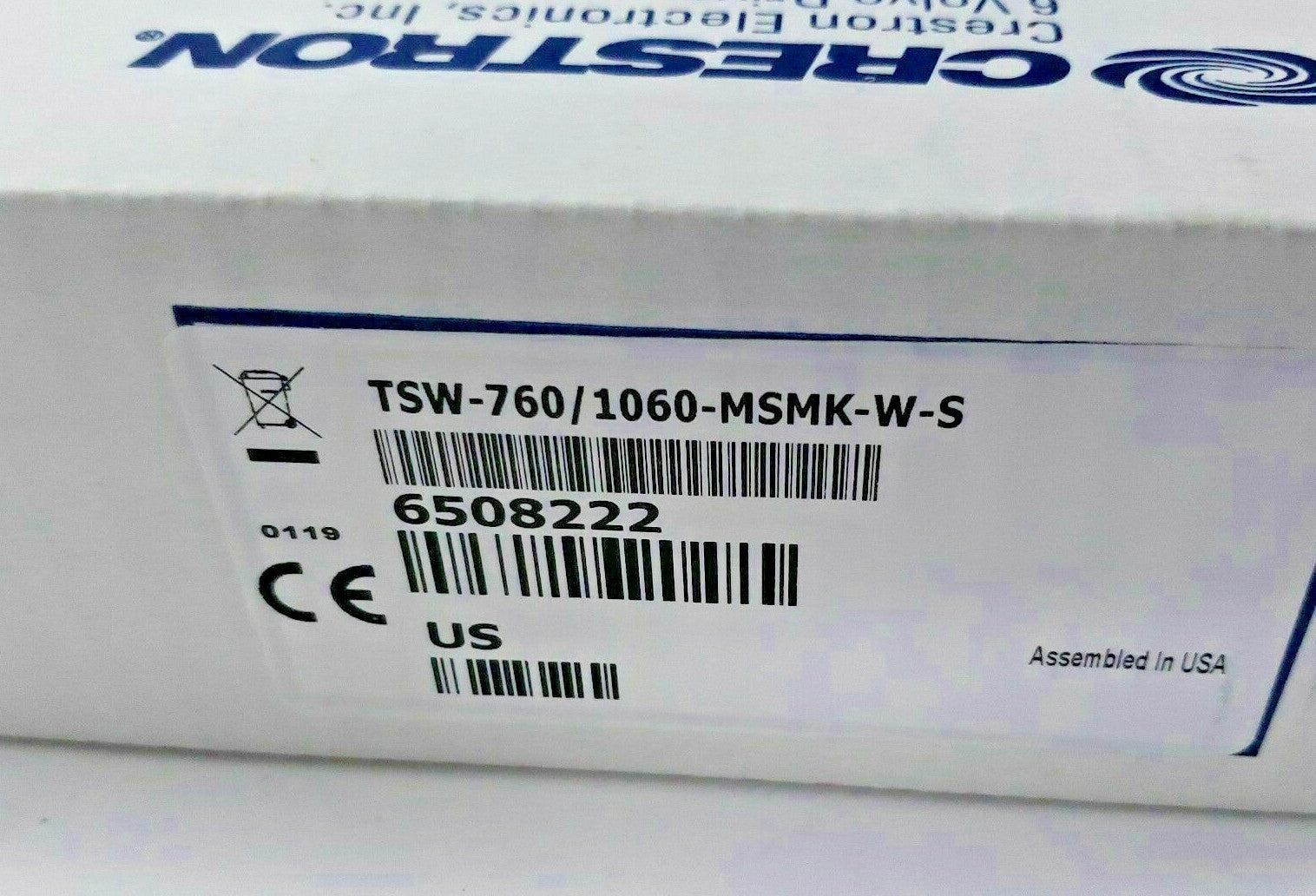

Crestron TSW-760/1060-MSMK-W-S Multi-Surface Touch Screen Mount Kit (White) New

The TSW-760/1060-MSMK multisurface mount kit provides a versatile surface mounting solution for a number of Crestron touch screens.  Using the multisurface mount kit, the touch screen can be mounted directly to glass, granite, marble, wood paneling, plaster, smooth masonry, or virtually any other flat surface.  The TSW-760/1060-MSMK is ideal for mounting at the entrance to a meeting space for room scheduling applications.  When installed, the touch screen is angled upwards at a 20° tilt.

The TSW-760/1060-MSMK attaches securely to a flat, smooth surface without screws using the included peel‑and‑stick adhesive pad.  For a finished appearance when mounted to a transparent glass wall, a cosmetic label is provided, which simply affixes to the opposing side of the glass behind the unit.  Alternately, the unit can be mounted over an electrical box using the screws provided. Cables may be run through the back of the unit or through one of the raceway knockouts located on the bottom or either side of the unit.

The kit comes complete with self-adhering plastic raceway for use on smooth surfaces to conceal wires running to the touch screen from the floor, ceiling, or an adjacent wall, pillar, or mullion.  The raceway is paintable and is composed of three 3 foot (0.91 m) sections plus an assortment of elbows and couplings.

• TSS-7
• TSS-10
• TSW-760
• TSW-760-NC
• TSW-1060
• TSW-1060-NC
